Echo Slim

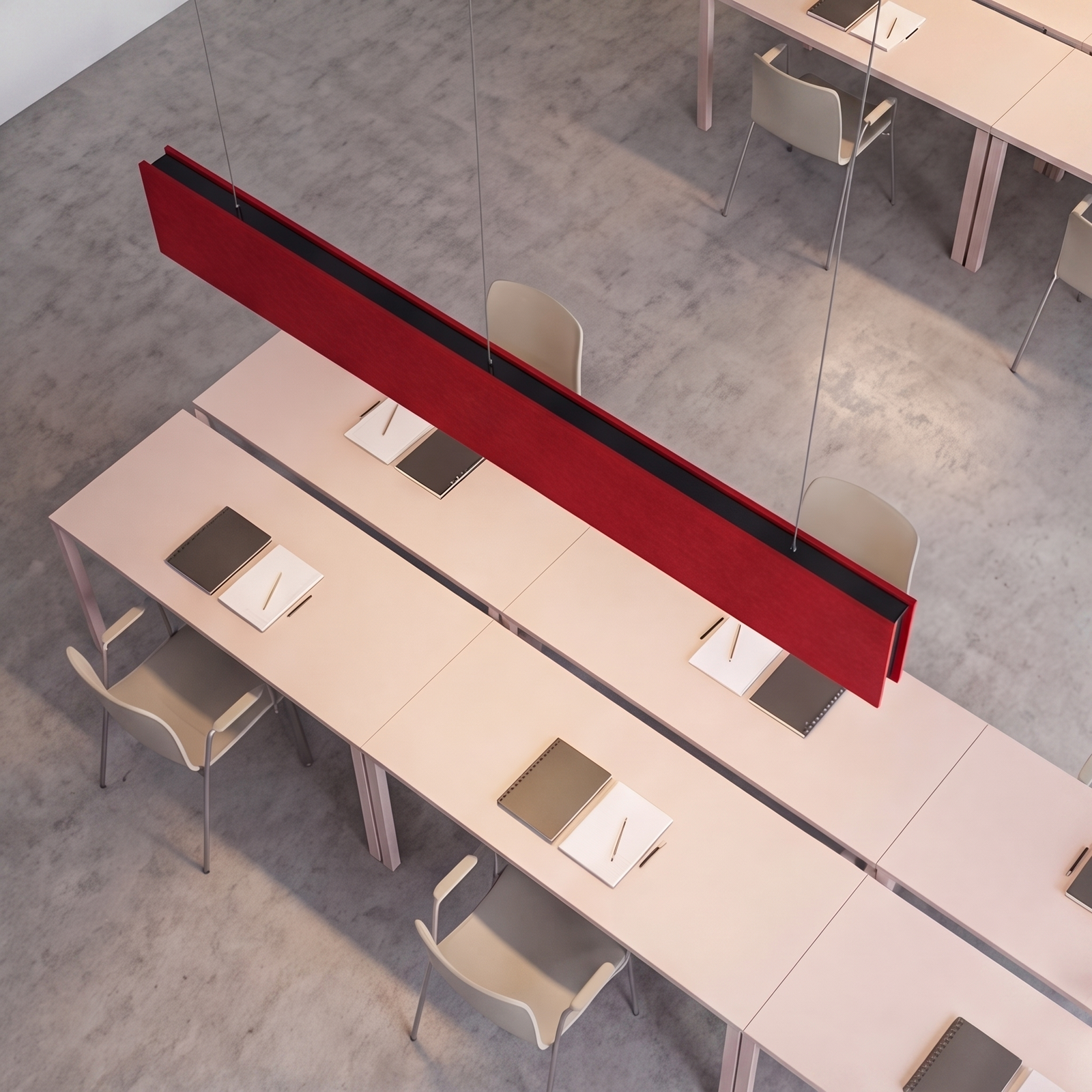

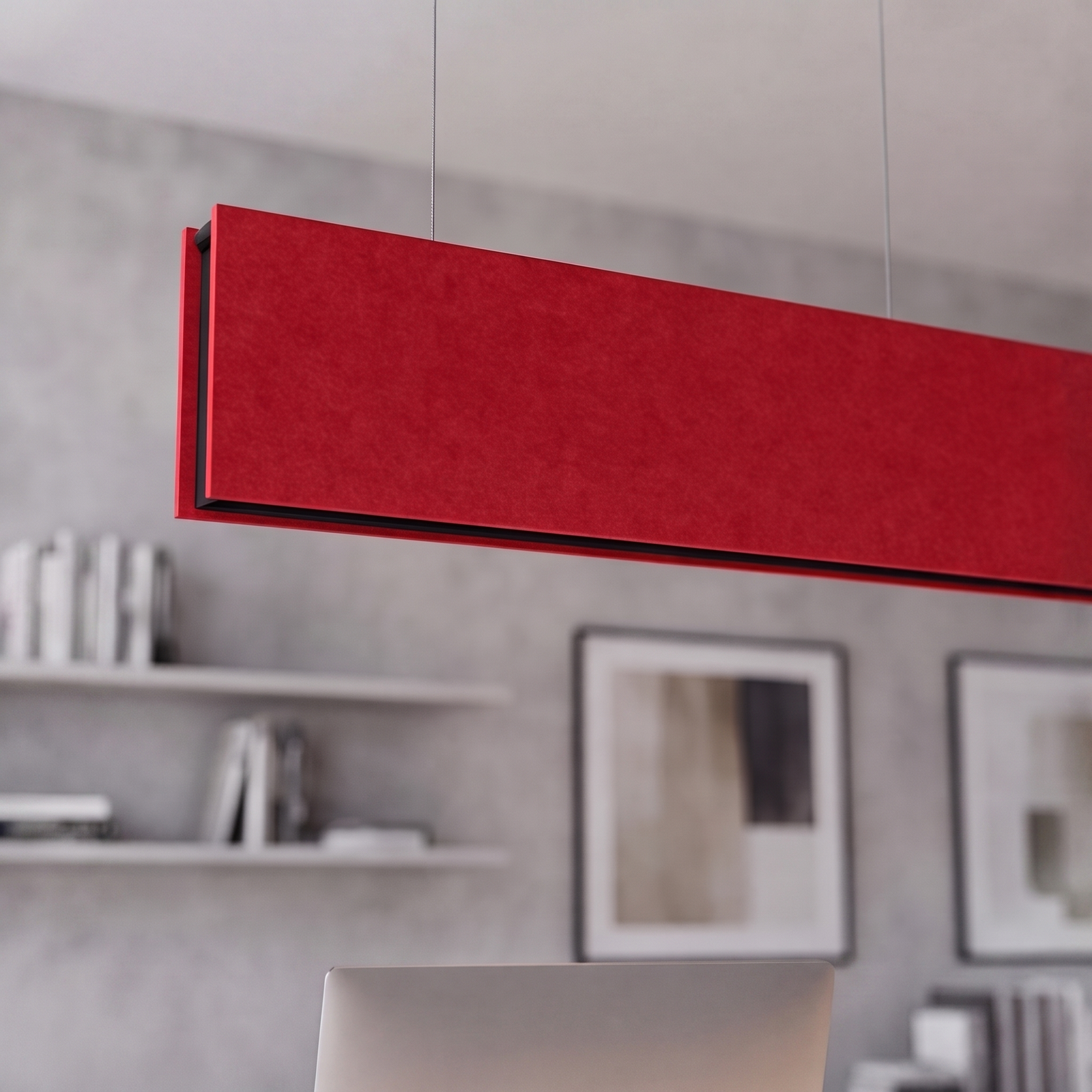

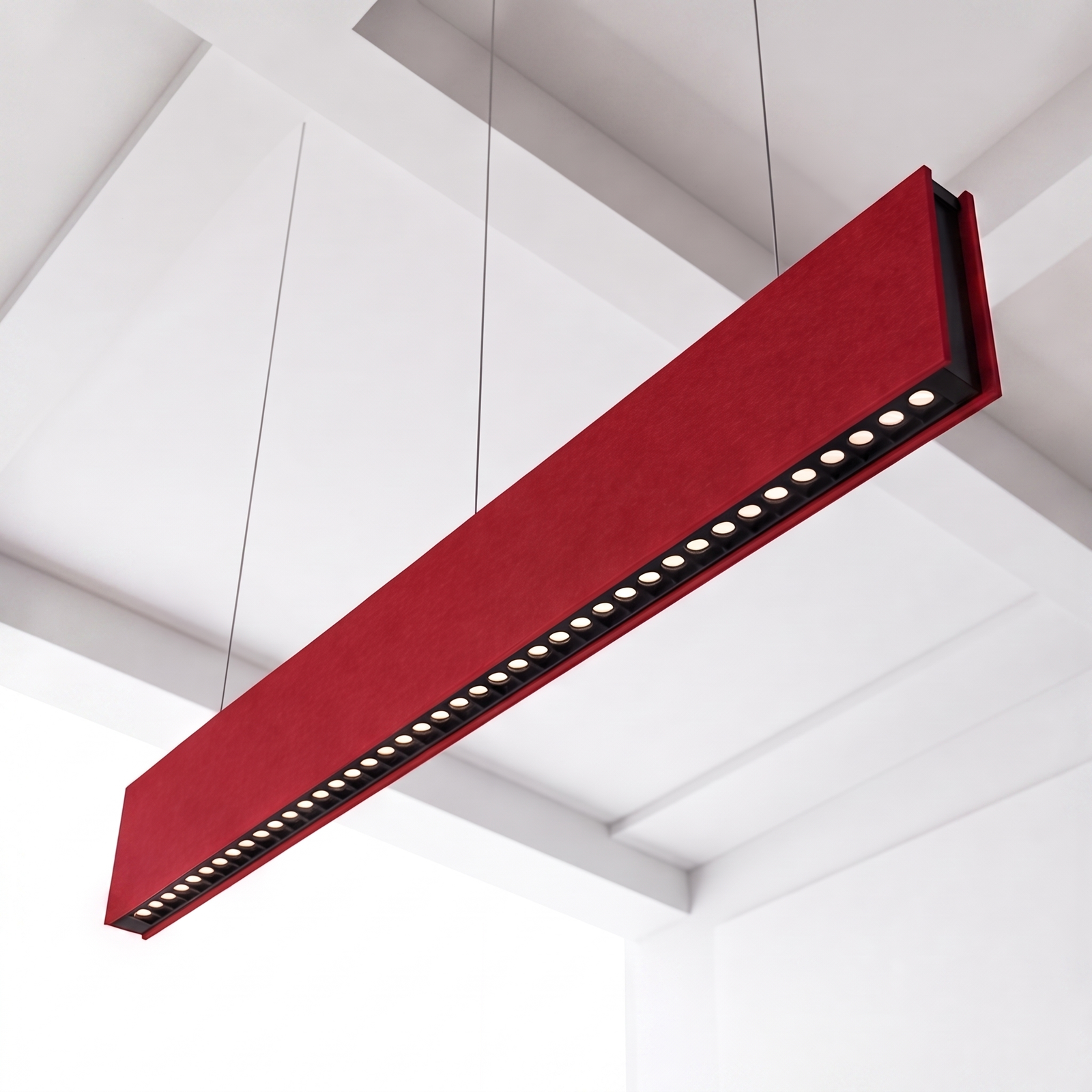

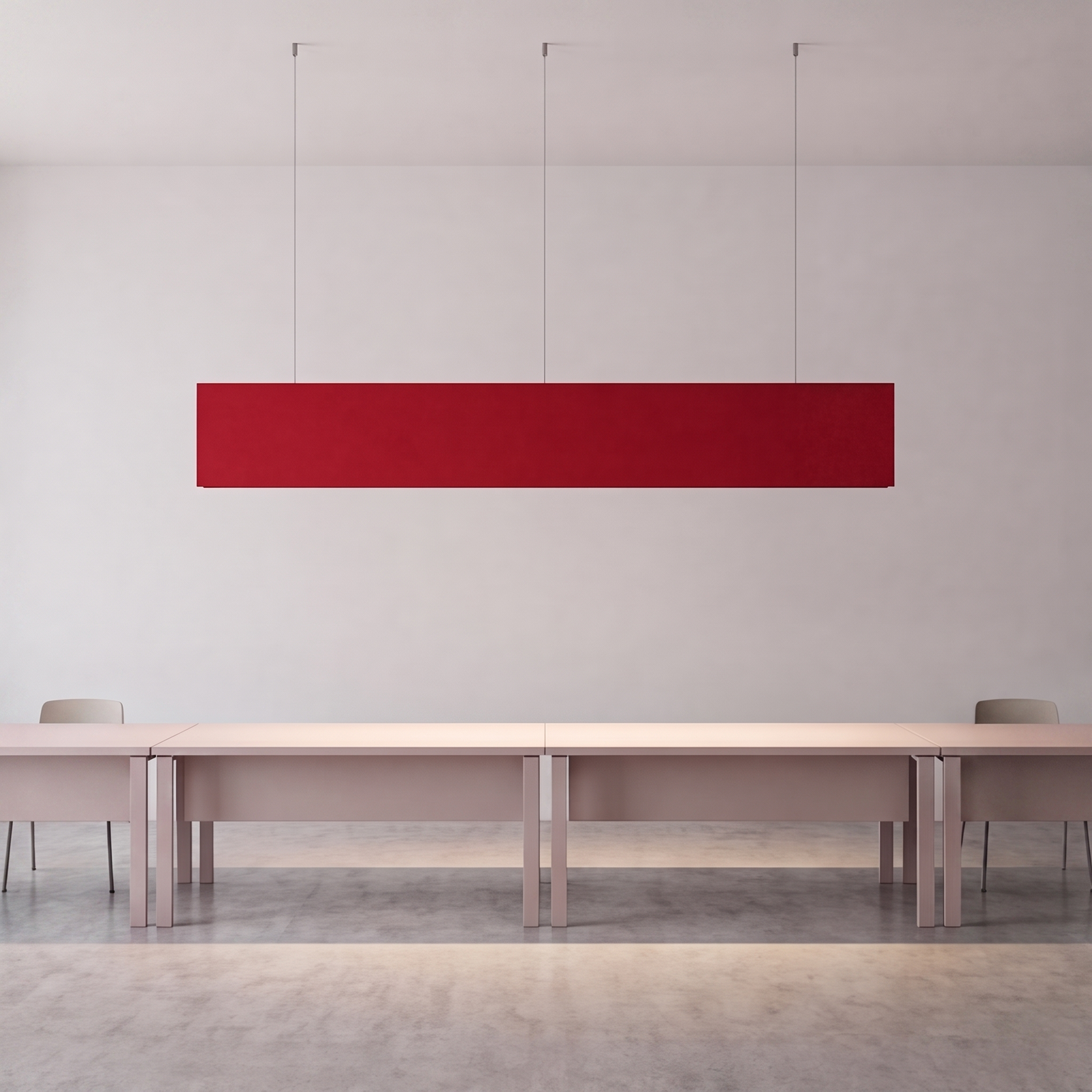

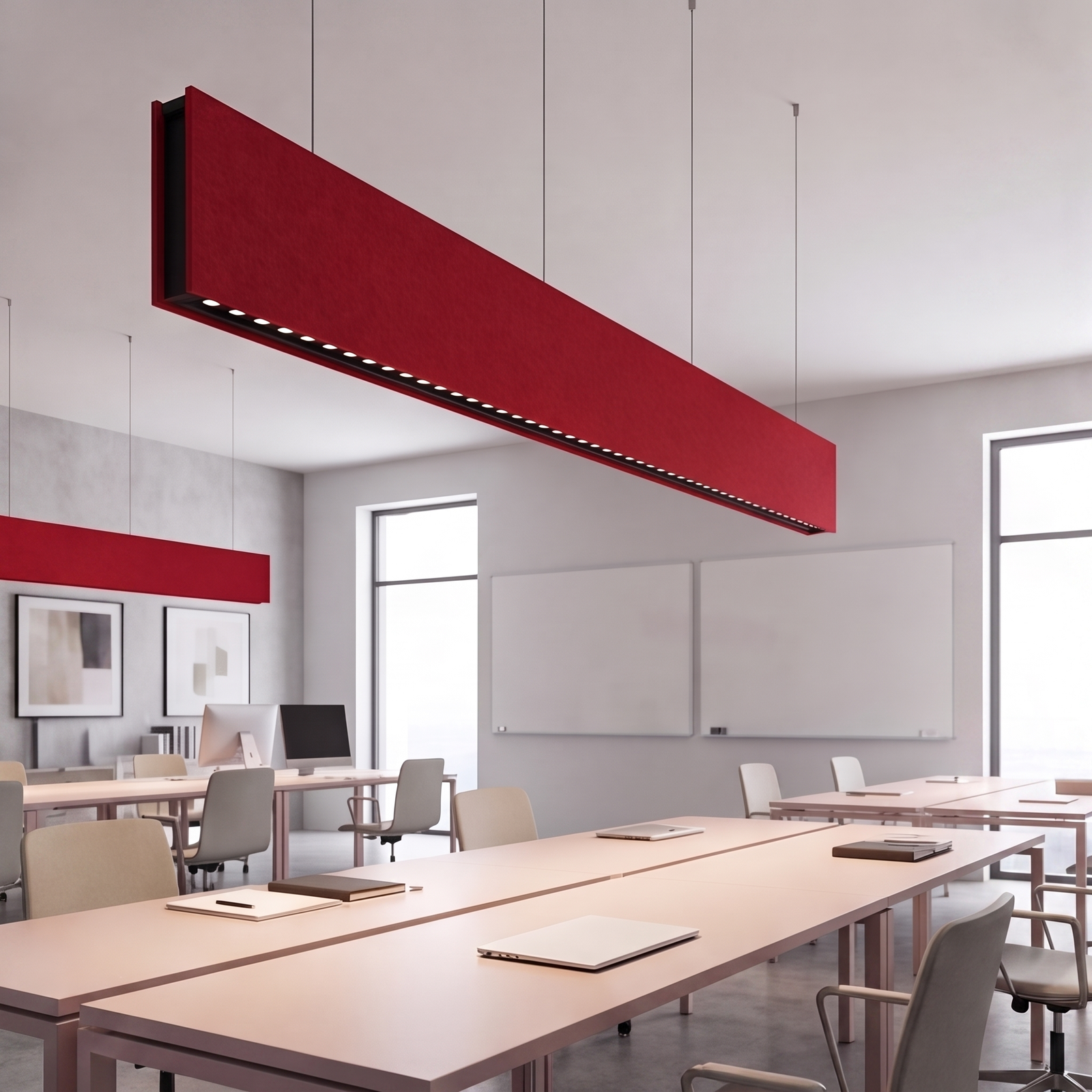

Echo Slim is a suspended linear acoustic luminaire combining high-performance illumination with effective sound absorption. Its slim architectural profile integrates louver and TIR lens optics for precise, low-glare light distribution, while the PET acoustic panels help reduce reverberation and improve comfort in offices, meeting rooms, educational facilities, hospitality spaces and public interiors.

MATERIALS

100% recyclable PET acoustic felt, aluminium lighting profile, louver and TIR lens optical system.

FINISH

Acoustic felt available in up to 25 colours. Lighting profile available in textured black, textured white and silver anodised finishes.

LIGHT SOURCE

Osram LED, CRI90+ or CRI95+, 2700K–6500K, UGR<19, SDCM<3.

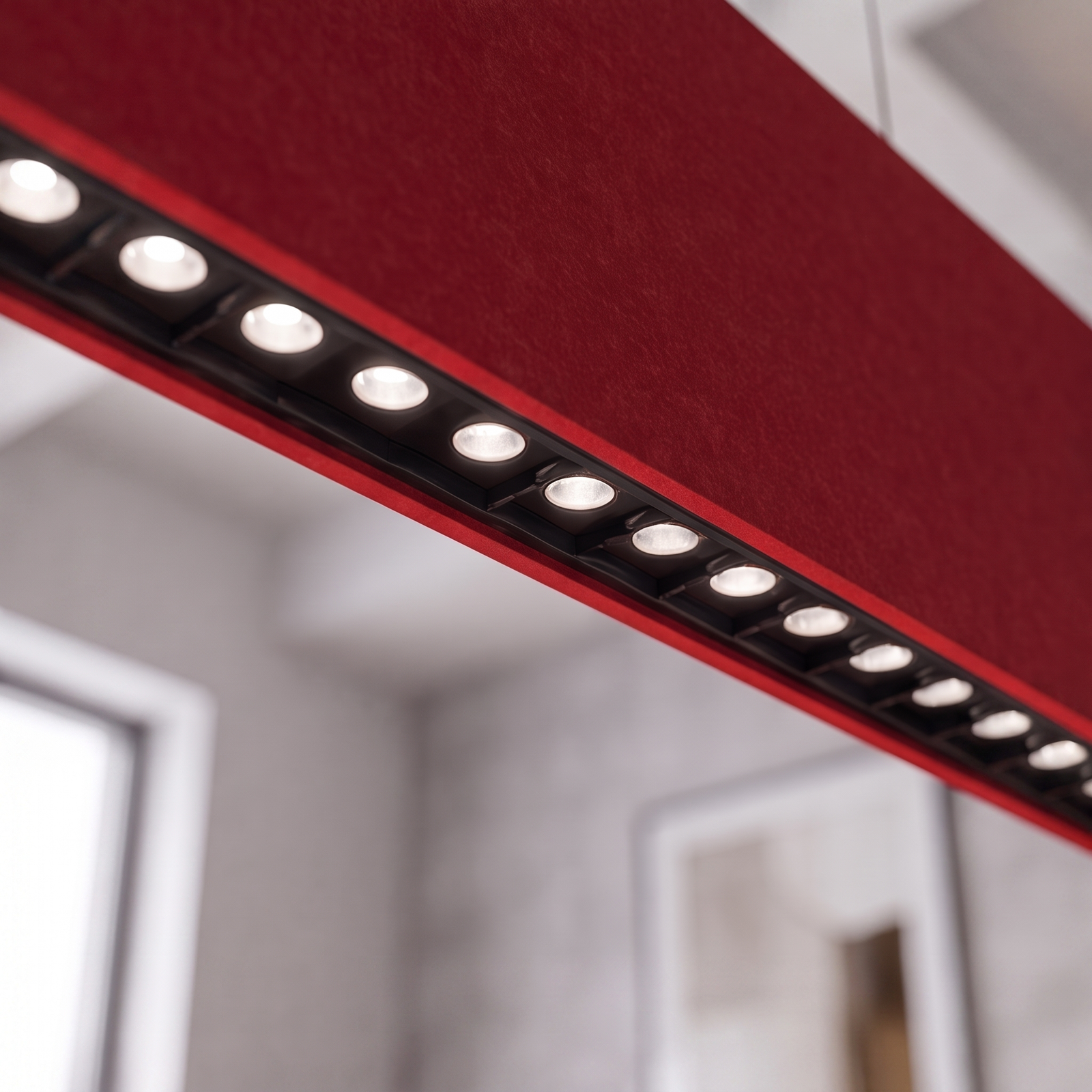

OPTICS

Louver and TIR lens options with 35×75°, 50×50°, Diamond 50° and 50° beam distributions.

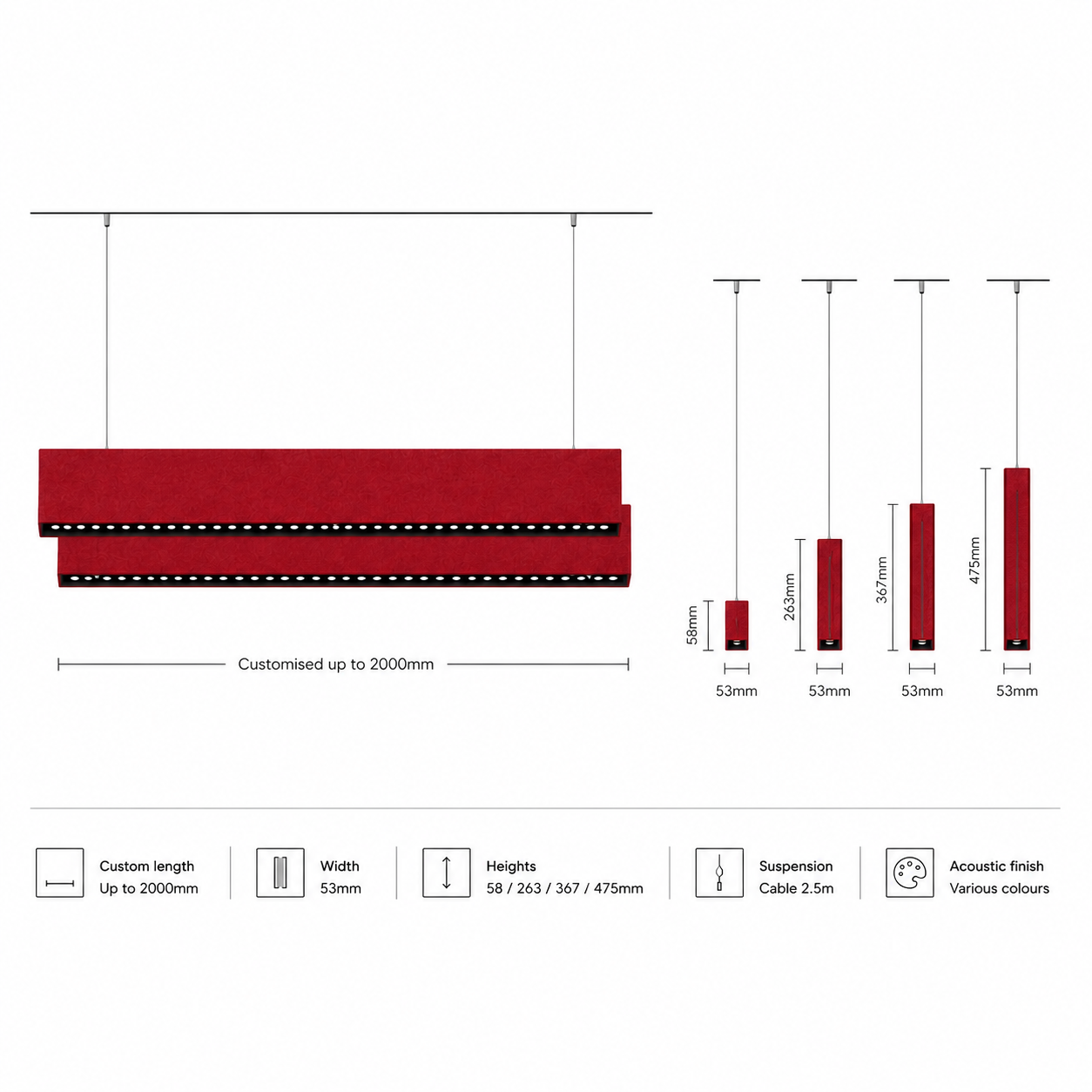

SIZES

Standard lengths from 600 mm to 1500 mm. Custom lengths up to 2000 mm available.

DOWNLOADS

Datasheet PDF
LDT Files
Installation Guide

Category:

Description

DESIGN FEATURES

  • Slim linear acoustic pendant design
  • Combines architectural lighting with sound absorption
  • Louver and TIR lens optical system
  • Low-glare performance with UGR<19
  • CRI90+ and CRI95+ LED options
  • High colour consistency with SDCM<3
  • NRC 0.7 acoustic absorption performance
  • Available in up to 25 acoustic felt colours

INSTALLATION FEATURES

  • Suspended pendant installation
  • Internal driver for a clean installation
  • Patented connection bracket system
  • Quick field joints for extended configurations
  • 220–240 VAC input voltage
  • ON/OFF, 0–10V and DALI control options
  • IP22 protection rating
  • L80B10 lifetime up to 50,000 hours
